UVFAB UV-LED Spot Curing System
UVFAB UV-LED Spot Curing SystemUVFAB UV-LED Spot Curing SystemUV-LED Spot Curing System

UV LED Spot Curing System

$2,499.00

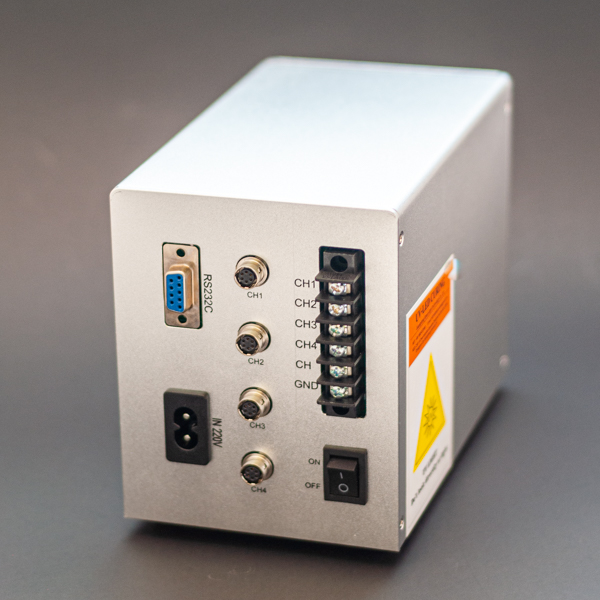

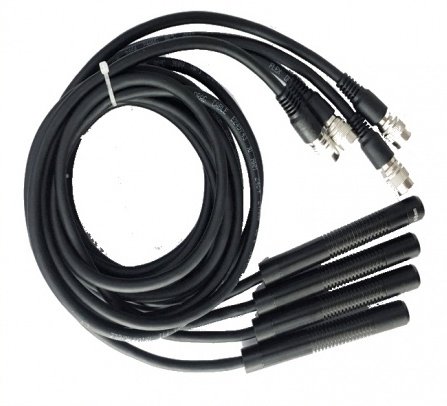

UVFAB’s high-intensity spot-curing system features all the benefits of LED-curing technology in a much smaller, more versatile unit. This system includes a controller with a foot switch and four LED heads. LED heads are available in 365, 385, 395nm, and 405 nm which can be outfitted with 8mm diameter focusing lenses. LED heads and focusing lenses can be individually controlled. Individual exposure times and intensity settings can be set for each LED head, giving users maximum curing flexibility

UVFAB UV-LED spot curing systems generate curing energy using high-intensity UV-LEDs instead of conventional metal-halide or mercury-arc lamps. The relatively narrow waveband of energy emitted by UV LEDs results in cooler substrate temperatures compared to traditional UV lamp systems, making them ideal for curing thermally sensitive materials. UVFAB LED UV curing systems offer many energy and cost-saving benefits, such as no warm-up period, lower energy consumption, no bulbs to change, and more consistent wavelength and intensity output for better process control.

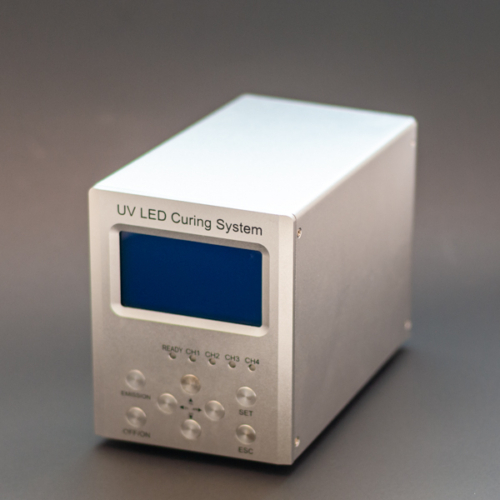

In addition to the curing flexibility, this system also features an easy-to-use control interface that allows flexibility in the setup and use of the unit. The spot curing system can be activated by a foot pedal (included) or by the user interface.

SKU: SPOTCURE-400 Category: UV Curing Systems Tags: 365nm UV Curing, 385nm UV Curing, 395nm UV Curing, 405nm UV Curing, UV Spot Curing, UV-LED Curing, UV-LED Spot Cure
  • Description
  • Additional information
  • Applications
  • Reviews (0)

Description

  • Lens Size: 8mm in diameter
  • Spot Diameter: φ8mm
  • UV Light Intensity: up to 6,800 mW/cm2 at 27mm irradiation distance
  • UV Intensity Control: Dimmable 10%-100%
  • Instant on/off; low power consumption
  • No Filters required; no replacement lamps
  • Available in 365nm, 385nm, 395nm, and 405nm wavelengths
  • Cooling Method: Aluminum body, air-cooled
  • Input Voltage: 120VAC/60Hz or 220VAC/50Hz
  • Operating Voltage: 7.5-36 VDC
  • Power Consumption: 50VA
  • Footprint: 166 x 100 x 138 mm (LxWxH)
  • Weight: 5.5 lb.
  • Operation by foot switch

Additional information

Weight 5.5 lbs
Dimensions 12 × 8 × 7 in

Applications

  • Hard disk assembly (Read-write head packaging, gold wire fixation, bearing, coil, chip bonding, etc.)
  • Assembly of motors and components (Wire, coil fixed, coil end fixed, PTC/NTC components bonding, protect transformer core)
  • DVD/Digital Camera (Lens, lens pasting, circuit board reinforcement)
  • Sensor production (Gas sensor, photoelectric sensor, optical fiber sensor, photoelectric encoder, etc.)
  • Assembly of cell phone components (Camera lens, receiver, microphone, shell, liquid crystal module, touch screen coating, etc.)
  • TFT-LCD pasting and packaging of LCD panel FPC
  • UV LED light curing application of PCB
  • UV LED light curing application of Optics Series
  • Optical element assembly (Lens group, prism, DLP optical engine assembly, CCD, COMS)
  • Optical communication industry components (All kinds of glass packaging structures are bonded or sealed, the fixation of tiny components, etc. Such as PLC Branching Unit, WDM, AWG, etc.)
  • UV LED light curing application of Research Institutes
  • Medical device and medical accessories LED UV light source curing application
  • Capacitive touch screen adhered to curing
  • UV encapsulation and curing application of laser
