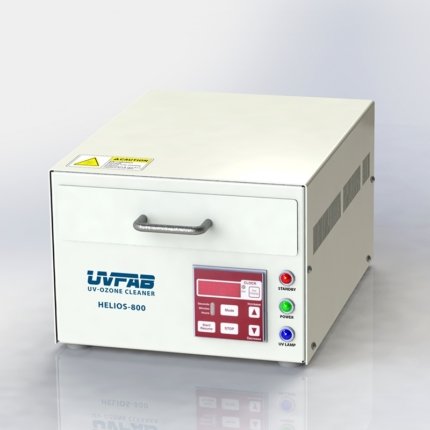

Model HELIOS-800

Tabletop UV-Ozone Cleaner

Compact

Model HELIOS-800 is a compact, effective, affordable and lightweight UV Ozone Cleaning system, taking minimal lab and clean room space.

Economical

The HELIOS-800 UV Ozone Cleaner has an affordable price. We provide free shipping in USA plus a 2-year Warranty.

Effective

The UV Ozone Cleaner is equipped with  digital process timer, 8×8 inch High-intensity UV (Ultraviolet) grid lamp with a reflector for increased uniformity, hour counter, 2-inch exhaust port and LED indicator lights.

The HELIOS UV Ozone Cleaner, Model HELIOS-800 is designed to remove molecular levels of organic contamination to achieve the cleanest possible surfaces on various types of substrates. A high intensity mercury vapor UV grid lamp generates 254nm ultraviolet radiation which breaks the bonds of organic molecules on the surface. Strong emission at 185nm converts atmospheric oxygen into reactive ozone, which attacks the small molecular fragments and creates volatile organics.

This compact tabletop UV-Ozone Cleaner features a drawer-loaded sample stage which can effectively process up to 8” (W) x 8“ (D) x 1.4” (H) substrates and boosts UV and ozone production using a custom synthetic quartz UV Grid lamp. Operation is as simple as placing your samples in the process chamber, closing the drawer, and setting the desired process time on the digital timer. This system features a drawer safety interlock switch to protect users from UV and ozone exposure during the cleaning process.

The HELIOS-800 features an 8×8 inch high-intensity UV Grid lamp for greater ozone production with a reflector for more uniform UV radiation and faster cleaning rates. We provide the most competitive prices including FREE Shipping in USA. This system can usually ship within 2-3 days after receipt of order based on stock availability.

UVFAB Guarantee
We offer a 2-year of warranty on our UV-Ozone Cleaning systems.

System Features

  • Stainless steel process chamber
  • Uses ambient air in process chamber to produce ozone
  • Sample tray size: 8″ x 11″ (8″ x 8″ effective area)
  • Maximum sample height of 1.4″ (35 mm)
  • Stainless steel pedestal for positioning versatility (1″ or 25.4 mm height)
  • 8″x8″ high-intensity UV grid lamp
  • Stainless-steel reflector for improved uniformity
  • Drawer safety interlock to avoid accidental UV exposure
  • LED process indicator lights
  • Digital process timer for more precise UV exposure
  • Lightweight, rugged design
  • Electrical: 120VAC, 60Hz
  • Minimal cost of ownership and maintenance
  • Operates in room temperature at atmospheric pressure (no vacuum)
  • 2-inch OD stainless steel exhaust port
  • Compact footprint, uses minimal lab space: 10” x 13” x 7” (WxDxH)
  • Fast and user friendly system operation
  • Digital hour counter to keep track of UV lamp life time
