300mm (12-inch) UV Cleaning and UV Surface Treatment System for Semiconductor Wafers

Walnut Creek, CA – December 12, 2018 – UVFAB® Systems, Inc., an American manufacturer of Ultraviolet (UV) and Ozone surface treatment equipment, announced the release of a new UV-Ozone Cleaning System, Model HELIOS-1200TM.

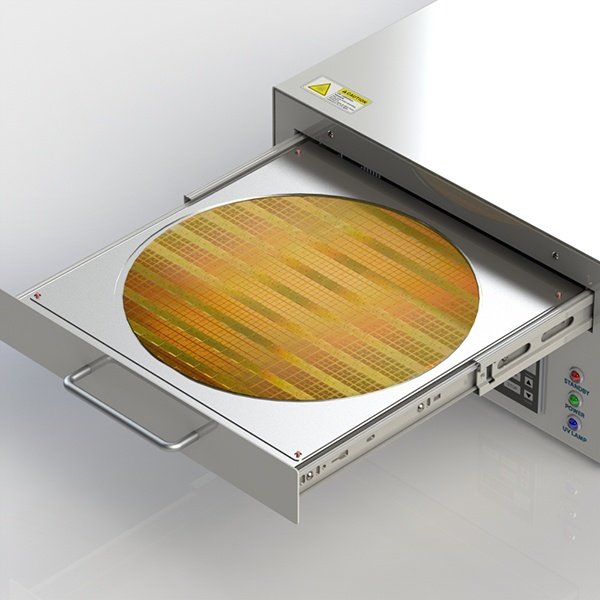

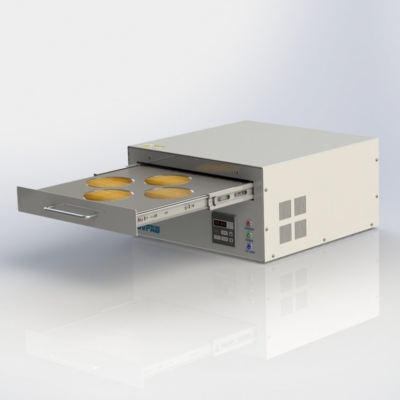

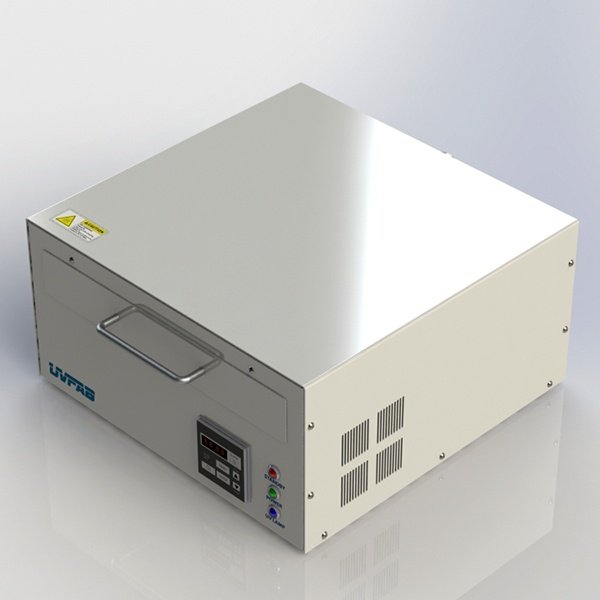

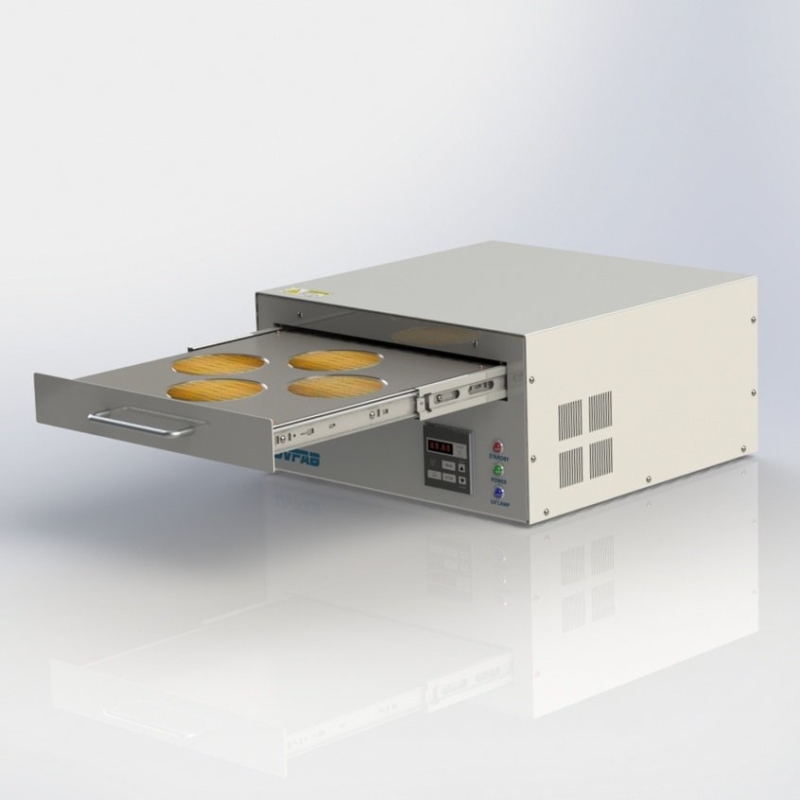

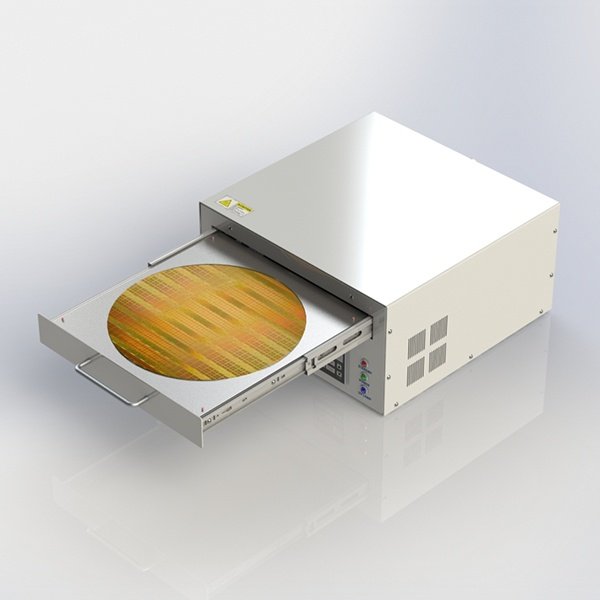

The HELIOS-1200 system is designed to be very compact, lightweight and competitively priced. It includes a high-intensity ultraviolet (UV) grid lamp for increased uniformity as well as a digital process timer which allows more accurate control over the process time. The drawer loading sample stage can accommodate up to 12”x12” substrates, one 300mm wafer, one 200mm wafer or four 100mm wafers using prefabricated substrate holders. This system also comes with a built-in hour-counter to keep track of UV lamp life time for maintenance purposes.

The UV Ozone Cleaning process is a photo-sensitized oxidation process in which the contaminant molecules of photo resists, resins, human skin oil, cleaning solvent residues, silicone oils, and flux are excited and/or dissociated by the absorption of short wavelength UV radiation. Atomic oxygen is simultaneously generated when molecular oxygen is dissociated by 185nm and ozone by 254nm ultraviolet wavelengths. The 254nm UV radiation is absorbed by most hydrocarbons and also by ozone. The products of this excitation of contaminant molecules react with atomic oxygen to form simpler, volatile molecules, which desorbs from the surface. Therefore, when both UV wavelengths are present atomic oxygen is continuously generated, and ozone is continually formed and destroyed.

Using a UV-Ozone Cleaner, near atomically clean surfaces can be achieved in minutes without any damage to your devices. This fast method of obtaining ultra-clean surfaces free of organic contaminants on most substrates, such as quartz, silicon, gold, nickel, aluminum, gallium arsenide, alumina, glass slides, etc. can easily be achieved by utilizing a well-designed UV-Ozone cleaning system.

About UVFAB Systems, Inc.

UVFAB® manufactures and distributes equipment solutions in the Semiconductor, Electronics, BioMedical, Aerospace, HVAC, Medical and Photovoltaic industries. Our line of products is diversified and comprehensive; suitable for research and development labs, University and Government organizations, production facilities, foundries as well as fabless companies. Our current products include UV Ozone CleanersUV Curing SystemsWafer Mounting Systems, and Wafer Expanders. Our equipment is used worldwide by top researchers, universities and leading corporations.Please visit our website at www.uvfab.com for more information and do not hesitate to contact us if you have any questions.
